1300 Ton Die Casting Machine | 1300 Ton High Pressure Aluminium Alloy Die Casting Machine

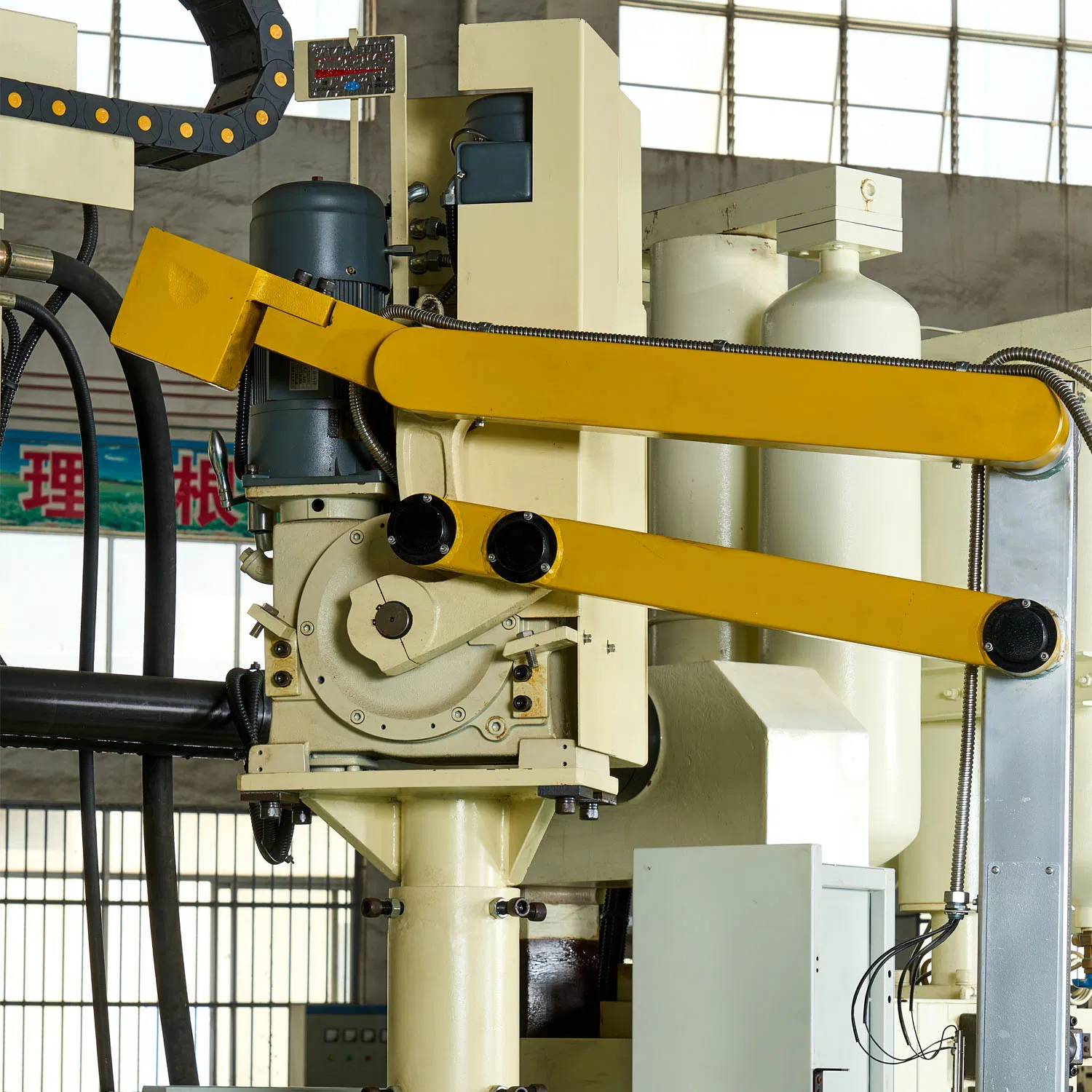

ZLC-1300T Cold Chamber Die Casting Machine for Large-Scale Aluminium Casting Production

Maximum Clamping Force. Precision Injection Control. Built for High-Volume Manufacturing.

The ZLC-1300T High Pressure Aluminium Alloy Die Casting Machine is a heavy-duty cold chamber die casting system engineered for large-scale industrial casting operations requiring exceptional productivity, injection precision, and long-term reliability. Featuring a massive 13,000 kN (1300 Ton) clamping force, advanced PLC-based control architecture, and a high-performance hydraulic system utilizing globally recognized components, this machine is designed to meet the rigorous demands of modern aluminum die casting production.

Built for manufacturers producing complex and high-volume cast components, the ZLC-1300T combines a durable double-toggle locking mechanism, multi-stage injection control technology, and intelligent hydraulic management to deliver consistent casting quality, improved cycle efficiency, and enhanced operational stability.

Whether manufacturing automotive components, industrial equipment parts, electrical housings, telecommunications products, aerospace castings, or heavy-duty aluminum structures, the ZLC-1300T provides the performance and precision required for demanding production environments.

---

Designed for Large-Scale Aluminium Die Casting Operations

The production of high-quality aluminum castings requires precise control over:

• Clamping force
• Injection speed
• Pressure intensification
• Mold protection
• Thermal stability

The ZLC-1300T has been engineered to optimize each stage of the die casting process while maximizing productivity and reducing operational downtime.

Its advanced control systems and industrial-grade construction make it suitable for continuous manufacturing environments operating around the clock.

---

Key Features & Benefits

Heavy-Duty Double Toggle Clamping System

The machine utilizes a reinforced double-toggle locking mechanism designed to deliver exceptional clamping performance under high-pressure casting conditions.

Advantages

• Increased clamping rigidity
• Improved mold protection
• Enhanced casting consistency
• Reduced flash formation
• Long-term structural durability

The clamping system is manufactured using high-strength spheroidal graphite iron castings combined with precision CNC machining for maximum accuracy and longevity.

---

High-Strength Ductile Iron Platen Construction

The machine platens are manufactured from premium-grade ductile iron and processed using advanced CNC machining technology.

Benefits include:

• Superior load-bearing capability
• Enhanced structural stability
• Reduced deformation
• Increased mold alignment accuracy

This robust construction supports long-term production reliability under demanding operating conditions.

---

Precision Electronic Clamping Position Control

The integrated electronic ruler positioning system provides real-time monitoring and control of clamping movements.

Advantages include:

• Accurate mold positioning
• Consistent cycle performance
• Reduced setup times
• Improved process repeatability

---

Advanced Multi-Stage Injection Control

The ZLC-1300T features a sophisticated 4-stage injection control system capable of delivering highly controlled metal injection profiles.

Benefits include:

• Improved filling performance
• Reduced porosity
• Enhanced surface quality
• Greater casting precision

The system incorporates large-diameter logic valves and precision flow control valves to minimize hydraulic pressure fluctuations and improve injection responsiveness.

---

Hydraulic Intensification System

The machine delivers a casting force of:

1080 kN Intensification Force

This high-pressure intensification capability ensures:

• Improved metal density
• Better cavity filling
• Reduced shrinkage defects
• Enhanced mechanical properties

The result is higher-quality cast components with improved dimensional accuracy.

---

Intelligent Hydraulic System

The hydraulic system incorporates premium international components sourced from industry-leading manufacturers.

Hydraulic Components

• YuKen (Japan)
• Rexroth (Germany)
• Vickers (USA)

These systems provide:

• Reliable pressure control
• Smooth machine operation
• Improved system stability
• Reduced maintenance requirements

---

Energy-Efficient Hydraulic Power System

The machine utilizes:

High-Low Pressure Twin Pump Hydraulic System

Benefits include:

• Reduced energy consumption
• Improved hydraulic efficiency
• Lower operating costs
• Stable production performance

---

Automatic Lubrication System

The centralized lubrication system automatically supplies lubricant to critical mechanical components.

Advantages include:

• Reduced wear
• Extended machine life
• Lower maintenance requirements
• Improved operational reliability

---

Premium International Components

To maximize machine performance and long-term reliability, the ZLC-1300T incorporates globally recognized components.

CNC & Control Systems

• Siemens S7-200 Control System (Germany)
• LED Operator Interface

Hydraulic Components

• YuKen (Japan)
• Rexroth (Germany)
• Vickers (USA)

Sealing Systems

• Trelleborg (Sweden)
• Fluorten (Italy)

Electrical Components

• Schneider Electric (France)

Structural Components

• Taiwan-Manufactured Tie Bars & Columns

This international component selection helps ensure reliability, serviceability, and production consistency.

---

Standard Machine Configuration

Included standard features:

• Double-toggle locking system
• High-strength ductile iron platens
• Low-pressure mold protection
• Hydraulic gear-driven mold adjustment
• Automatic centralized lubrication
• Fast hydraulic ejector system
• Core pulling system
• 4-stage injection control
• Two-speed piston charging system
• Hydraulic sprue extraction platform
• Electronic mold position control
• Energy-saving hydraulic system

---

Applications

The ZLC-1300T is suitable for manufacturing:

Automotive Components

• Transmission housings
• Engine parts
• Structural brackets
• Chassis components

Industrial Equipment

• Pump housings
• Machinery components
• Hydraulic system parts

Electrical & Electronics

• Aluminum enclosures
• Heat sinks
• Power equipment housings

Telecommunications

• Communication equipment structures
• Protective cast housings

Aerospace & Transportation

• Lightweight structural castings
• Precision aluminum components

---

Technical Specifications

Clamping Unit

Specification	Value
Model	ZLC-1300T
Clamping Force	13,000 kN
Die Opening Stroke	1000 mm
Ejector Force	580 kN
Ejector Stroke	200 mm
Die Height Range	450 – 1200 mm
Platen Size	1740 × 1740 mm
Tie Bar Spacing	1100 × 1100 mm

---

Injection Unit

Specification	Value
Injection Stroke	880 mm
Intensification Force	1080 kN
Plunger Diameter	100 – 140 mm
Aluminum Injection Weight	13 – 22.5 kg
Casting Pressure	70 – 138 MPa
Maximum Casting Area	3250 cm²
Chamber Flange Diameter	240 mm
Chamber Flange Projection	25 mm

---

General Specifications

Specification	Value
Machine Type	Cold Chamber Die Casting Machine
Control System	PLC + Siemens S7-200
Hydraulic Pressure	16 MPa
Main Motor Power	74 kW
Oil Tank Capacity	2350 L
Machine Dimensions	11000 × 3500 × 4350 mm
Machine Weight	90 Tons
Warranty	12 Months
Certification	ISO / CE Available

---

Why Choose the ZLC-1300T?

The ZLC-1300T combines massive clamping capacity, intelligent injection control, premium international components, and advanced hydraulic technology to deliver a highly capable die casting solution for modern industrial production.

Its ability to process large aluminum castings with exceptional consistency makes it a valuable investment for manufacturers seeking to increase production efficiency while maintaining strict quality standards.

For operations requiring reliable performance, reduced downtime, and high-volume casting capability, the ZLC-1300T provides the power and precision necessary to compete in demanding manufacturing markets.

---

Warranty & Technical Support

The ZLC-1300T is backed by a 12-Month Manufacturer Warranty covering defects in materials and workmanship under normal operating conditions.

Support services include:

• Installation supervision
• Operator training
• Commissioning assistance
• Technical consultation
• Spare parts support
• Remote troubleshooting

---

Request a Customized Quotation

Contact our technical sales team today to discuss production requirements, mold specifications, automation integration, installation planning, or to request a customized quotation tailored to your die casting operation.
