Colombia Roof Sheet Roll Forming Machine | Colombia T1000CO Multiple Ribs Metal Roof Sheet Roll Forming Machine

Automatic Cold Roll Forming Machine for Galvanized Steel, Zinc & Color-Coated Roofing Sheets

Precision Roll Forming. High-Speed Production. Engineered for Modern Roofing Manufacturing.

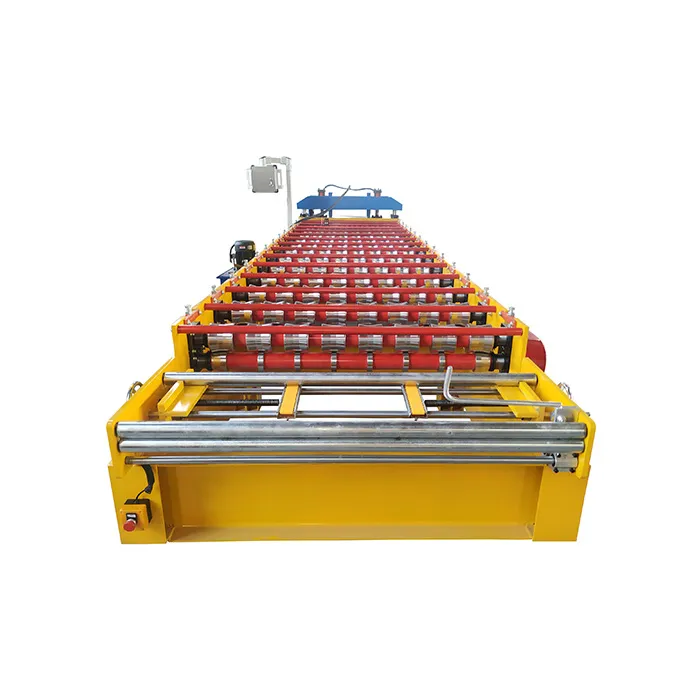

The T1000CO Multiple Ribs Cold Roll Forming Machine is a fully automated roofing sheet production system designed for manufacturing high-quality galvanized steel, zinc-coated, and pre-painted metal roofing panels. Engineered with precision roll-forming technology, PLC automation, and hydraulic cutting capabilities, this machine delivers consistent profile accuracy, reliable production performance, and excellent operational efficiency for commercial roofing manufacturers and construction material producers.

Designed to produce Colombia-style multiple rib roofing sheets, the T1000CO offers production speeds of up to 15 meters per minute, making it an ideal solution for high-volume manufacturing of residential, commercial, agricultural, and industrial roofing products.

Its robust H-beam frame construction, precision-machined forming rollers, and intelligent PLC control system ensure smooth operation, repeatable quality, and reduced production downtime.

---

Designed for Professional Roofing Sheet Manufacturing

The T1000CO is developed for manufacturers producing durable metal roofing panels with high dimensional accuracy and consistent profile quality.

It is widely used for manufacturing:

• Galvanized roofing sheets
• Zinc roofing panels
• Color-coated steel roof sheets
• Corrugated roofing panels
• Wall cladding panels
• Industrial roofing systems
• Agricultural building roofing
• Commercial construction roofing materials

The machine supports continuous production while maintaining precise profile geometry throughout long manufacturing cycles.

---

Key Features & Benefits

Fully Automatic PLC Control System

The T1000CO is equipped with an intelligent PLC control panel that automates the complete roll-forming process.

Benefits

• One-touch operation
• Automatic length control
• Production parameter storage
• Accurate sheet counting
• Reduced operator intervention
• Improved manufacturing efficiency

The PLC interface simplifies production management while ensuring consistent product quality.

---

High-Precision Roll Forming Technology

The machine utilizes precision-engineered roll stations manufactured from 45# high-grade steel, providing exceptional forming accuracy and long service life.

Advantages include:

• Consistent profile dimensions
• Smooth sheet surface finish
• Reduced material distortion
• Improved production reliability

The forming system is designed to maintain profile accuracy throughout extended production runs.

---

Heavy-Duty Steel Frame Construction

The machine frame is manufactured using reinforced:

• 350 H-Beam Steel
• 300 H High-Grade Structural Steel

Benefits include:

• Superior structural rigidity
• Reduced machine vibration
• Long-term dimensional stability
• Enhanced operational reliability

The robust construction provides excellent support for continuous industrial production.

---

Automatic Hydraulic Cutting System

The integrated hydraulic cutting unit provides clean and accurate cutting without interrupting production flow.

Features

• Automatic length control
• Hydraulic pre-cutting
• High-strength Cr12 cutting blades
• Burr-free finished edges
• Improved production efficiency

The hydraulic system ensures precise cuts while reducing material waste.

---

Precision Forming Rollers

The forming rollers are manufactured from hardened 45# premium-grade steel for maximum wear resistance and long-term durability.

Benefits include:

• High forming precision
• Extended roller lifespan
• Stable production quality
• Low maintenance requirements

---

Adjustable Production Speed

The machine supports production speeds of:

10–15 meters per minute

This allows manufacturers to optimize throughput according to production requirements while maintaining high-quality finished products.

---

Heavy-Duty Decoiler System

The production line can be configured with either:

• Manual Decoiler
• Fully Automatic Hydraulic Decoiler

Standard Decoiler Specifications

• Capacity: 5,000 kg
• Maximum Coil Diameter: 550 mm
• Minimum Coil Diameter: 450 mm

The decoiler automatically feeds steel coils into the roll-forming system, ensuring smooth and continuous production.

---

Chain Drive Transmission System

The chain-driven transmission system provides reliable power transfer throughout the forming process.

Advantages include:

• Stable machine operation
• Simplified maintenance
• Long service life
• Reliable torque transmission

---

Complete Production Line Configuration

The standard production line includes:

• Manual or Automatic Decoiler
• Steel Coil Guiding Platform
• Strip Leveling Unit
• Roll Forming Machine
• Hydraulic Pre-Punching Device
• Hydraulic Pre-Cutting System
• Hydraulic Pump Station
• PLC Control Cabinet
• Finished Product Receiving Table

This integrated workflow supports efficient and continuous roofing sheet production.

---

Applications

The T1000CO is widely used in:

Residential Construction

Production of:

• Metal roof panels
• Residential roofing sheets
• Wall cladding systems

---

Commercial Buildings

Suitable for:

• Shopping centers
• Warehouses
• Office buildings
• Commercial roofing projects

---

Industrial Facilities

Manufactures roofing systems for:

• Factories
• Manufacturing plants
• Distribution centers
• Logistics warehouses

---

Agricultural Buildings

Ideal for:

• Barns
• Livestock facilities
• Storage buildings
• Greenhouses

---

Roofing Material Manufacturing Plants

Supports continuous production of:

• Ribbed roofing sheets
• Corrugated panels
• Zinc-coated roofing systems
• Color-coated metal roofing

---

Technical Specifications

Specification	Details
Model	T1000CO
Machine Type	Cold Roll Forming Machine
Roofing Profile	Colombia Multiple Ribs
Material Compatibility	Galvanized Steel, Zinc Steel, Color-Coated Steel
Material Thickness	0.3–0.6 mm
Feeding Width	1000 mm
Roller Stations	13 (Optional 15 Stations Available)
Roller Material	45# High-Grade Steel
Shaft Diameter	70 mm
Drive System	Chain Drive
Production Speed	10–15 m/min
Cutting Method	Automatic Hydraulic Cutting
Cutting Blade Material	Cr12 Tool Steel
Main Motor Power	5.5 kW
Control System	Fully Automatic PLC
Voltage	380V / 50Hz / 3 Phase (Customizable)
Machine Dimensions	6600 × 2100 × 1500 mm
Machine Weight	Approximately 3.6–3.7 Tons

---

Decoiler Specifications

Specification	Details
Type	Manual or Automatic
Coil Capacity	5,000 kg
Maximum Coil Diameter	550 mm
Minimum Coil Diameter	450 mm
Hydraulic Cylinder Diameter	125 mm
Pump Power	3 kW
Reducer Power	4 kW

---

Why Choose the T1000CO Roll Forming Machine?

The T1000CO combines precision engineering, automated production technology, and heavy-duty construction to deliver dependable performance for modern roofing sheet manufacturers.

Its intelligent PLC control system, hydraulic cutting technology, precision forming rollers, and flexible production capabilities help manufacturers improve productivity while maintaining exceptional product quality.

Whether producing roofing panels for residential construction or supplying large-scale commercial and industrial projects, the T1000CO provides the reliability, efficiency, and accuracy required for competitive manufacturing operations.

---

Warranty & Technical Support

The T1000CO includes comprehensive manufacturer warranty coverage against defects in materials and workmanship under normal operating conditions.

Technical support services include:

• Machine installation assistance
• Commissioning support
• Operator training
• Production optimization
• Maintenance guidance
• Spare parts support
• Remote troubleshooting

---

Request a Customized Quotation

Contact our technical sales team today to discuss roofing profile requirements, custom machine configurations, automatic decoiler options, installation planning, or to request a customized quotation tailored to your production facility.
