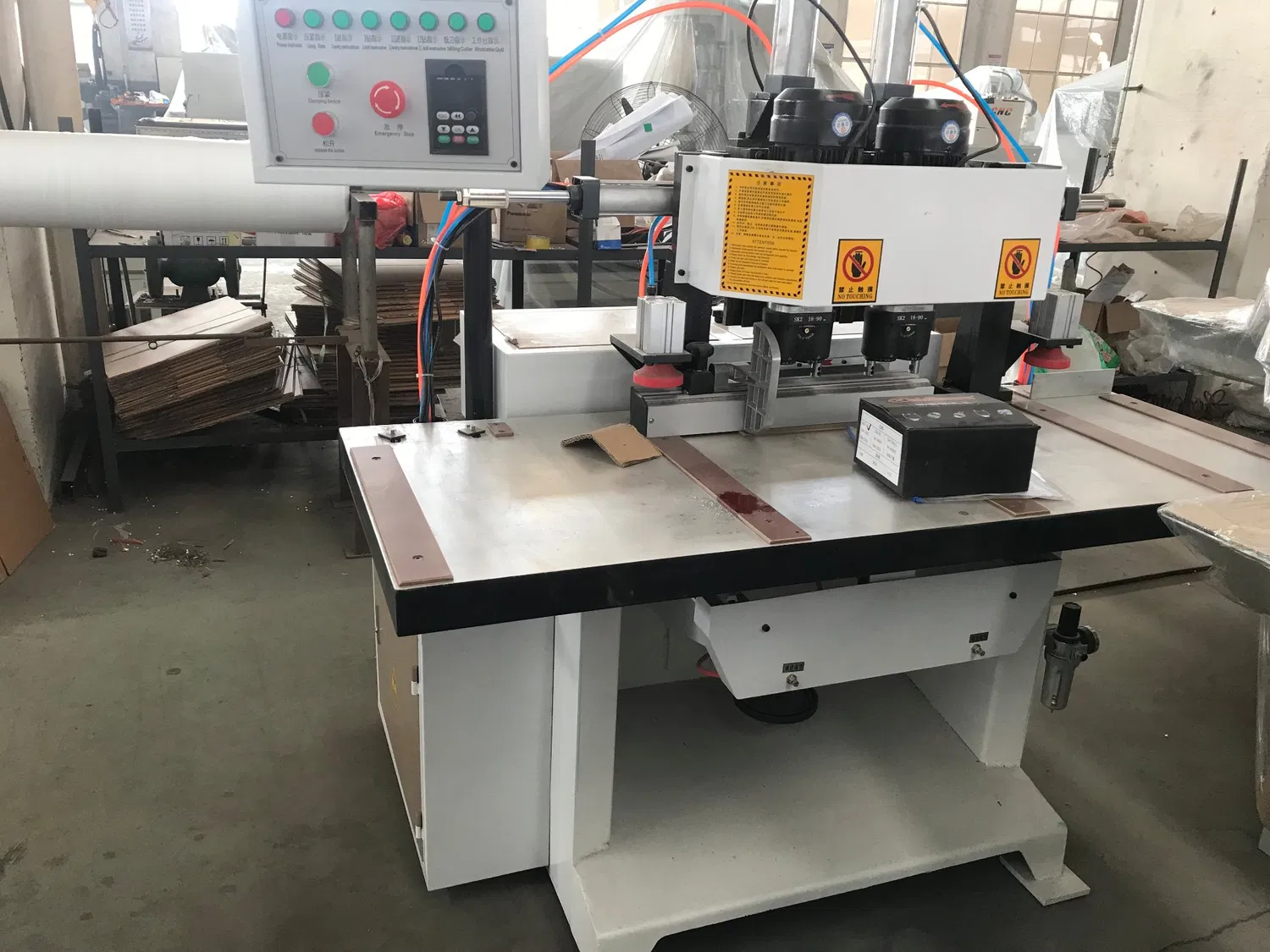

CNC Door Lock Making Machine | CNC Door Lock & Hinge Making Machine for Wood Doors

Zhongding CNC Door Lock Hole Drilling & Hinge Slotting Machine for Precision Door Manufacturing

Automated Door Processing. Exceptional Accuracy. Built for Professional Production Environments.

The Zhongding CNC Door Lock & Hinge Making Machine is a high-precision CNC woodworking solution designed specifically for drilling, milling, slotting, and machining lock holes, hinge recesses, door closer cavities, and hardware mounting points in wooden door panels.

Built to streamline modern door manufacturing processes, this advanced CNC system combines multiple machining operations into a single automated workflow. Equipped with four independent high-performance spindle motors and industrial-grade motion control components, the machine delivers exceptional accuracy, repeatability, and production efficiency for door manufacturers, cabinet producers, and woodworking facilities.

Whether producing residential doors, commercial entry systems, hotel room doors, or custom architectural millwork, this machine helps manufacturers improve productivity while maintaining precise machining tolerances.

---

Designed for Modern Door Manufacturing

Traditional manual drilling and routing methods often create inconsistencies that affect hardware installation, product quality, and production efficiency.

The Zhongding CNC Door Lock Machine automates these processes by providing accurate machining for:

• Door lock holes
• Mortise lock cavities
• Hinge holes
• Hinge recesses
• Door closer pockets
• Door hardware slots
• Access control hardware preparation
• Custom routing applications

This significantly reduces setup time while improving consistency across production runs.

---

Key Features & Benefits

Multi-Function CNC Processing System

The machine integrates multiple machining operations into one automated workstation.

Functions include:

• Lock hole drilling
• Hinge boring
• Hinge slot routing
• Door closer slotting
• Hardware recess machining
• Fine trimming operations

This reduces the need for multiple standalone machines and minimizes production bottlenecks.

---

Four Independent High-Performance Spindles

Each spindle is optimized for a specific machining function, allowing efficient and accurate processing.

Top Drilling Spindle (T1)

• SCS / AKEMDE 3.5 kW

Designed for:

• Lock hole drilling
• Hardware mounting holes
• Precision boring operations

---

Top Slotting Spindle (T2)

• SCS / AKEMDE 3.5 kW

Suitable for:

• Mortise preparation
• Lock body recesses
• Surface routing applications

---

Side Slotting Spindle (T3)

• SCS / AKEMDE 6.0 kW

Designed for:

• Deep slot milling
• Lock case machining
• Door edge processing

---

Side Fine Trimming Spindle (T4)

• SCS / AKEMDE 2.2 kW

Provides:

• Clean finishing cuts
• Precise edge refinement
• Improved hardware fitment accuracy

---

Advanced CNC Control System

The integrated touchscreen control interface supports intuitive machine operation.

Features include:

• User-friendly interface
• English language support
• Automated machining cycles
• Precision parameter control
• Simplified setup procedures

This helps operators achieve consistent results while reducing training requirements.

---

Industrial-Grade Motion Components

To ensure long-term reliability and machining precision, the machine incorporates premium industrial components.

Motion & Transmission System

• ASK Linear Guide Rails
• Taiwan Kotai Precision Rack System
• Taiwan Kotai Reducers
• High-precision servo motors

Benefits include:

• Smooth movement
• Reduced vibration
• Improved positioning accuracy
• Extended service life

---

High-Power Servo Drive Technology

The machine utilizes:

• 750W + 750W + 750W Servo Drive Motors

This provides:

• Faster positioning
• Precise motion control
• Consistent machining performance
• Reduced operational wear

---

Heavy-Duty Machine Structure

The reinforced machine body is designed to support continuous industrial production.

Advantages include:

• Increased stability
• Reduced vibration during machining
• Improved accuracy
• Enhanced equipment lifespan

Its heavy-duty construction contributes to superior performance when processing large door panels and hardwood materials.

---

Board Protection System

Rubber pressing rollers help secure workpieces while preventing surface damage during machining.

This feature helps:

• Protect finished surfaces
• Improve panel stability
• Reduce production defects
• Maintain product quality

---

Applications

The Zhongding CNC Door Lock & Hinge Machine is commonly used in:

Door Manufacturing Facilities

Suitable for:

• Interior doors
• Exterior doors
• Fire-rated doors
• Security doors
• Hotel room doors

---

Architectural Millwork Production

Used for:

• Commercial door systems
• Custom wood doors
• Premium architectural projects
• High-volume production environments

---

Furniture & Cabinet Manufacturing

Supports:

• Specialty cabinet hardware preparation
• Precision routing applications
• Custom woodworking projects

---

Technical Specifications

Specification	Details
Product Name	CNC Door Lock Hole Drilling Machine
Brand	Zhongding
Model	MZ2060 / ZDM1000
Machine Type	CNC Door Lock & Hinge Processing Machine
Total Power	14.5 kW
Maximum Working Width	650 mm
Maximum Milling Groove Length	2200 mm
Maximum Milling Groove Depth	110 mm
Maximum Milling Groove Width	25 mm
Slot Milling Spindle Speed	18,000 rpm
Air Pressure	0.7 MPa
Weight	1000 kg
Overall Dimensions	3700 × 1600 × 1600 mm
Machine Dimensions	2000 × 1500 × 1600 mm
Warranty	1 Year

---

Motor Configuration

Function	Power
Side Slot Motor	6.0 kW
Side Square Hole Motor	2.2 kW
Top Hole Motor	2.2 kW
Upper Slot Milling Motor	2.2 kW
Servo Motors	750W × 3
Total Installed Power	14.5 kW

---

What’s Included

Your purchase includes:

• Zhongding CNC Door Lock & Hinge Machine
• Touchscreen CNC control system
• Industrial spindle configuration
• Servo drive system
• User documentation
• Technical support assistance

---

Why Choose the Zhongding CNC Door Lock Machine?

The Zhongding CNC Door Lock & Hinge Making Machine is designed for manufacturers seeking faster production, consistent machining quality, and reduced manual labor.

By integrating multiple door-processing functions into a single CNC platform, businesses can improve production efficiency while maintaining the precision required for modern door manufacturing.

Its industrial-grade components, powerful spindle configuration, and advanced CNC controls make it an ideal solution for professional woodworking operations focused on quality, reliability, and long-term performance.

---

Warranty & Technical Support

The machine includes a 1-Year Manufacturer Warranty covering defects in materials and workmanship under normal operating conditions.

Technical support is available for:

• Installation guidance
• Machine setup
• Operational assistance
• Maintenance recommendations
• Troubleshooting support

---

Request a Customized Quotation

Contact our technical sales team today to discuss production requirements, machining applications, voltage configurations, shipping arrangements, or to request a customized quotation tailored to your manufacturing operation.
